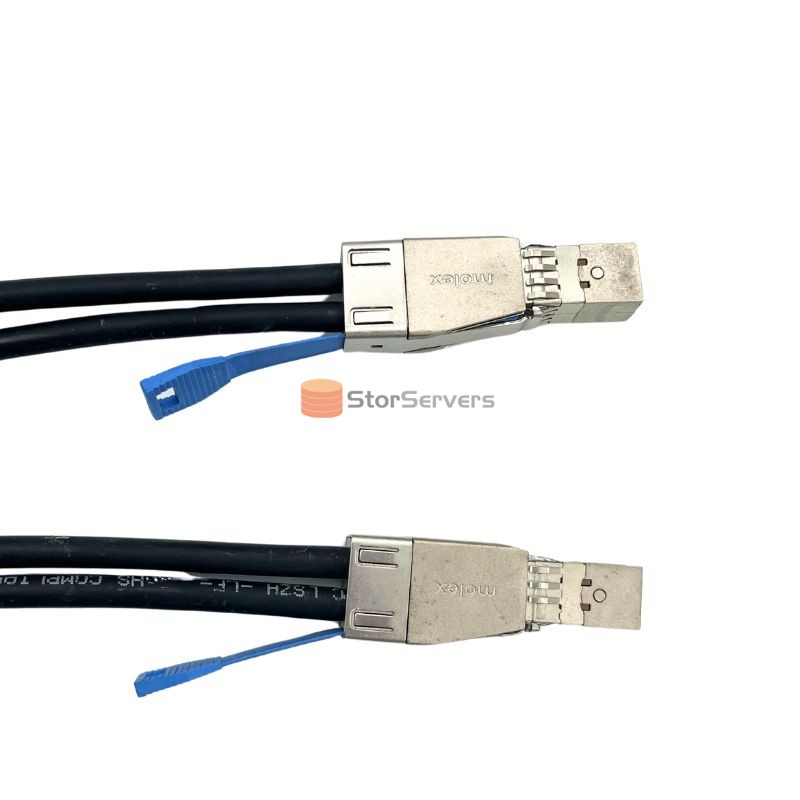

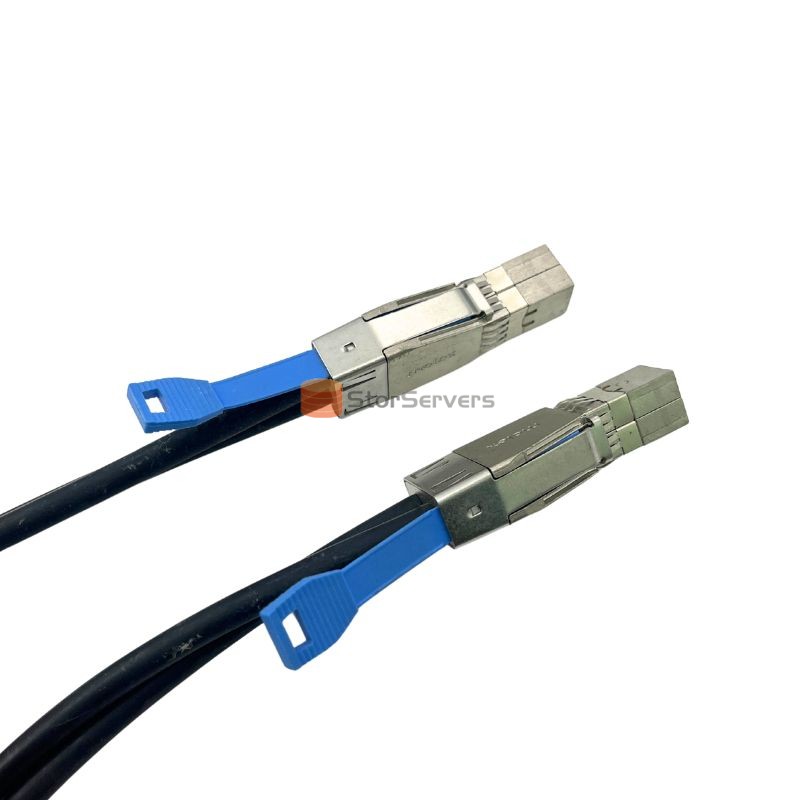

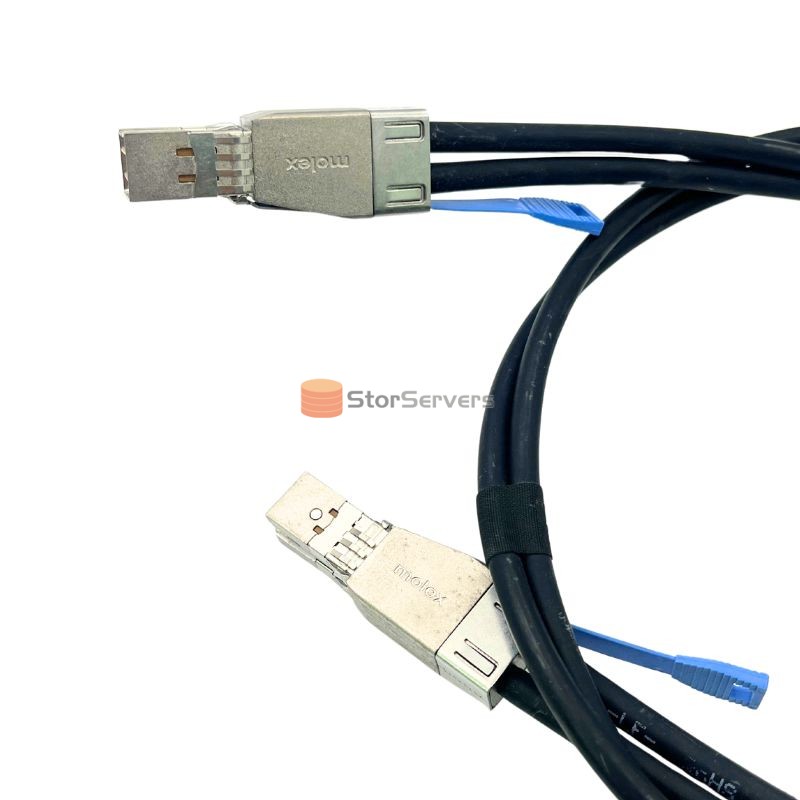

Data Cable SFF 8644 to SFF 8644
Applications
1、 Interface form: Both ends are SFF-8644 (External Mini SAS HD). Structure: 36 pins, metal shielding shell+lock buckle+pull ring, external dedicated, EMI resistant, hot swappable. 2、 Electrical and speed: Protocol: SAS 3.0 (12Gb/s), compatible with SAS 2.1 (6Gb/s) and SAS 2.0. Number of channels: x4 channels (4 differential channels per end). Single channel speed: 12 Gb/s; The total bandwidth is 48 Gb/s. Differential impedance: 100 Ω± 10%. Wire gauge: Common 28 AWG/30 AWG oxygen free copper. 3、 Length and specifications (passive copper cable): Standard length: 0.5m/1m/2m/3m/4m. 12Gb/s recommendation: ≤ 2m (optimal signal); A high specification line is required for 3-4 meters. Rated voltage: 30V DC; Rated current: 0.5A per pin. IV. Mechanical and environmental: Insertion and extraction force: maximum 100N; unlocking force ≥ 50N. Temperature: 0 ° C~+70 ° C (commercial grade). Certification: RoHS, REACH.
Key Features
- Mini SAS HD external to external
- Both ends are SFF-8644 (External Mini SAS HD)
- Structure: 36 pin, metal shielding shell+lock buckle+pull ring, external dedicated, EMI resistant, hot swappable
- Protocol: SAS 3.0 (12Gb/s), compatible with SAS 2.1 (6Gb/s), SAS 2.0
- Number of channels: x4 channels (4 differential channels per end)
- Single channel speed: 12 Gb/s; Total bandwidth 48 Gb/s
Specification
| Model |
SFF 8644 to SFF 8644 |
| Both ends |
are SFF-8644 (External Mini SAS HD) |
| Structure |
36 pin, metal shielding shell+lock buckle+pull ring, external dedicated, EMI resistant, hot swappable |
| length |
0.5m/1m/2m/3m/4m
|
| Controller |
Lack |
| Systems Interface Type |
Mini SAS HD external to external |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
